Overview by Bill Wilson
Presented here, with Chris Marron’s permission, is his Perpetual Harvest Greenhouse System (PHGS); reviewed, generally researched, and edited by Mark Hoffman. Mark is a Stelle area resident and professional engineer who concludes that this is a very plausible system for year round food production.
Offered to the Public
Chris is allowing us to publish this body of information to insure public access to his work. He professes that little of this design is his original work for all he has done is researched others work and as he says “put two & two together”. But no one we know of has taken all the different components he has laid out in his system and put them together into one design. Chris’s motivation in sharing all this is to do his part to support the emerging desire of people to find and live in truly meaningful and sustainable communities.
On The Ground
This is a recent body of work that Chris has put together and as of this time, neither he nor anyone else we know of has actually built and operated this greenhouse system or tested its production possibilities. The door is open for every and anyone to experiment with building a PHG System. Chris is interested and available to assist others who are serious about building and operating a ‘Perpetual Harvest Greenhouse System’. He is frequently on the move, traveling and consulting, so can be reached through Midwest Permaculture. Click here to email Chris.
Also included are some financial projections for an operating greenhouse under this design. Although they are just estimates, they are very encouraging numbers for they answer the need for finding more sustainable ways of economically supporting our small scale farmers and growers. This system can also be used in suburban and city environments providing nutritious food, income and greater food security for local residents.
If this system is capable of producing year-round-healthy food, it would bring the possibility of economic stability and true-food security to any region. The system would also be sustainable in the long run since it is estimated to use only a fraction of the energy of conventional greenhouses. As fossil fuel prices continue to rise, traditional green housing operations will become unprofitable.
Chris Marron is available for consultation and even project support, as time and funds allow.
Bill Wilson (March 2011)
|Overview – Description – Profit Potential – Flow Chart (PDF)|
Engineering Review and Description by Professional Engineer, Mark Hoffman
|The Perpetual Harvest Greenhouse Systemprovides an indoor ecosystem capable of growing equal yields of organic produce 52 weeks per year. This system creates 365 ideal growing days per year by optimizing light, carbon dioxide enrichment, and soluble nutrients in conjunction with continuous planting and harvesting. Because the geo-hydroponics (organic) based Perpetual Harvest system can economically simulate warm season growing conditions, crops that would otherwise be shipped from warmer climates can be grown profitably in colder climates during winter months.

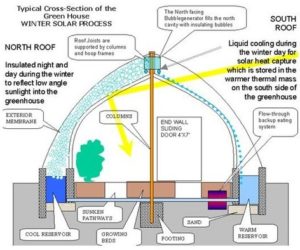

Diagram courtesy of:
Such off-season production significantly increases return on investment of the Perpetual Harvest system in comparison to conventional greenhouse systems because heating and cooling costs could be up to 75% less than for the standard three-season greenhouse operation. This system also allows a greenhouse operator to create growing conditions unique to specific crops such that almost any crop can be harvested at any time of year, even in colder climates.
The Perpetual Harvest Greenhouse system accomplishes profitable year round production by optimizing two primary features of greenhouse operation – Growing techniques and Energy management. This system integrates the latest innovations in greenhouse design and operation with emerging understanding of growing techniques to create production levels not possible in an outdoor system, or in a three-season greenhouse. Because this system can operate for four seasons, its yearly energy usage exceeds that of the three-season greenhouse, however its overall profitability is 6-8 times that of the conventional three-season greenhouse or outdoor plantings because the system can provide organic produce when other systems can not. The uniqueness of the Perpetual Harvest system lies not in any one feature, but instead in the integration of many innovative aspects of greenhouse design and operation. All the features utilized in the Perpetual Harvest system have been successfully applied in existing growing systems; however, research indicates that no single publicized greenhouse system currently in operation utilizes the combination of features integrated into the Perpetual Harvest system. Furthermore, the Perpetual Harvest system can be easily integrated with renewable energy systems such as a bio-diesel plant, ethanol still, methane bio-digester, and/or co-generation unit, thus improving energy efficiency, driving down operating costs, and producing marketable fuel by-products.
Optimizing Growing Conditions
The Perpetual Harvest system utilizes unique growing techniques to maximize plant growth. Enhanced growing techniques include: providing artificial light, carbon dioxide (CO2) enrichment, and maximizing soluble nutrients absorbed through roots and leaves. The system enhances growth by proportionally increasing the five most important growing conditions at certain times of the day, thus producing a ‘supercharged’ growing environment causing plants to reach erectly for the light while rapidly absorbing nutrients. The result is a significant and rapid growth surge. Plants can process approximately twice as many nutrients if light, CO2, and soluble nutrients are increased in balance at the same time. Standard greenhouse growing temperature is ~85°F, while experience indicates temperature can be successfully increased to 95°F with increased light, CO2, and soluble nutrient levels, along with additional water. Growing at increased temperature has the added advantage of allowing the greenhouse to remain sealed longer from the outdoor atmosphere each day, leaving the higher CO2 concentration available for a longer period. With normal light, CO2, and soluble nutrient levels, plants become stressed at temperatures above 85°F – not so, with the Perpetual Harvest system. Operating at higher greenhouse temperatures effectively utilizes periods where it is difficult to maintain greenhouse temperatures less than 85°F.
In the Perpetual Harvest system, plants receive the same amount of light from the fall equinox until spring equinox by adjusting day length with artificial sunlight. Experience indicates that ~11 ½ hours is optimal daylight length for most common food plants in temperate zones . Additionally, applying supplemental light for three hours each morning, every day of the year, at the same time that the CO2 concentration is enriched, has been seen to maximize plant growth. Increased light supports CO2 absorption by stimulating plants to open their stomata. Supplementing the red, blue, and yellow light frequencies during this enhanced growth period optimizes utilization of the added light. Red and blue frequencies (from halide lamps) enhance vegetative growth while yellow frequencies (from high-pressure sodium bulbs) enhance fruit set and development.
Carbon Dioxide Enrichment:
Normal atmospheric CO2 concentration is ~370 ppm, however, experience indicates that some plants prefer up to 2000 ppm CO2 (approximately five times normal). In the Perpetual Harvest system this increased level is maintained for only 3 hours in the mid morning. During this 3 hour period, the plants store CO2 that will be used to boost plant growth later in the day after CO2 level has returned to normal. CO2 is primarily produced by a flame (propane or natural gas) CO2 generator. The flame can serve as a ‘peaking CO2 generator’ and baseline CO2 levels could be provided by decomposing compost or other continuous low producing sources. A digital CO2 monitor determines when CO2 generators will cycle, and also serves as an alarm for humans to take precaution when in the greenhouse during the high CO2 period .
The Perpetual Harvest system utilizes the ebb and flow style of geo-hydroponics, passing organic nutrients through a soil-less growing medium placed in plastic lined beds. Pearlite, pumice, vermiculite, and decomposing organic matter (potting soil) comprise the soil-less growing medium. Using a soil-less growing medium greatly reduces the likelihood of soil borne diseases and pests that can proliferate in the enclosed greenhouse space. Soluble nutrients are provided by addition of organic compost tea created using the traditional Indore compost method developed by Sir Albert Howard . This method, based on years of compost experimentation, produces compost from decomposing cellulose products such as peat moss, straw, and last season’s crop residue mixed with already composted animal manure along with a small amount of real soil and recently finished compost as an inoculant.
In the Perpetual Harvest system, Indore compost is made using only organic ingredients mixed in a 25:1 ratio of carbon to nitrogen. Earthworms are added to the pile after the initial heating period (~8 days) to convert the existing nutrients into worm castings, a nutrient form more easily accessible to plants. After 14 days, compost is old enough to use as a nutrient base for making compost tea and/or growing medium. Foliar feeding of this compost tea, applied to the underside of leaves, is also performed in conjunction with the three-hour mid-morning light/CO2 enrichment period. After worm digestion, the compost can be mixed with last season’s used growing medium at a mixture rate determined by muscle testing . During this enhanced mode of operation, daily muscle testing (kinesiology) is utilized to provide the data needed to fine-tune light, nutrient, and temperature levels.
Energy Management System
Energy costs are the most expensive aspect of greenhouse operation. The Perpetual Harvest system capitalizes on recent innovations in greenhouse design to significantly reduce energy inputs. This reduction is primarily achieved through two aspects – Insulation design and Energy storage and transfer. Other aspects, such as greenhouse layout and temperature control also enhance efficiency, but to a lesser extent.
The south facing wall of the Perpetual Harvest greenhouse is composed of double layers of polyethylene, between which are injected biodegradable soap bubbles. The soap bubbles are fed into a distribution plenum at the top of the greenhouse where they emerge at intervals along the length of the greenhouse, and flow down to fill the space between the polyethylene sheets.
Click here to see a short video showing the filling of a greenhouse cavity with soap bubbles. It is an interesting website by ‘Solar Power Build’ of the United Kingdom.
Don’t forget to come back…:

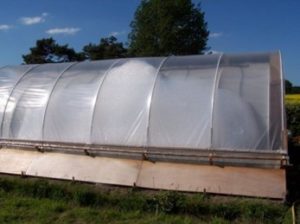

Recent developments in bubble making equipment designed for commercial fire suppression systems have resulted in equipment that can fill the polyethylene gap within minutes.
The Perpetual Harvest system employs a bubble indication system that senses bubble collapse and auto starts the bubble making machine when the bubble wall drops below a specified height. The soap bubbles resist convective heat transfer, and with an ‘R’ value of approximately R-1 per inch of bubbles, significantly increases R-value over that of single sheet polyethylene walls, or even double sheet polyethylene walls with an air gap in between. Soap bubbles also block infrared light but not visible or ultraviolet light. This attribute creates an ideal greenhouse situation since the light frequencies required for photosynthesis (visible light) pass through the bubbles but the frequencies that would result in radiant heat loss (infrared) are moderated. This means that light needed for plant growth is available even though unwanted heat transfer is minimized. Bubbles can impede unwanted heat transfer in either direction using this system. For example, draining the bubbles during the day can increase internal heat gain, while injecting bubbles during the day can reduce internal heat gain. Bubbles can be produced at night to prevent heat loss and maintain inside temperature. This process was developed in the Stelle greenhouse over twenty years ago by residents who received their funding through a State of Illinois grant and has been successfully used in Canada .
Energy Storage and Transfer Systems:
The Perpetual Harvest greenhouse design employs redundant energy storage and transfer systems. These systems listed by priority of use are:
- Subterranean heating/cooling system (SHCS)
- Hydronic radiant heat system with the following heat sources:
- Solar/thermal heater
- Co-gen unit waste heat
- Babington burner
- Natural gas/propane forced air heat as the final back-up heat source

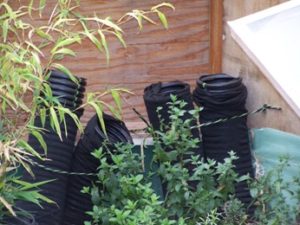

|The subterranean heating system is comprised of several hundred feet of thin walled 4″ perforated, polyethylene drainage tubing buried under gravel inside the greenhouse base. A fan connected to the tubing via a common plenum provides forced flow of greenhouse air through the tubing. Because daytime greenhouse air is warm and humid and the greenhouse base is cool, moisture will condense as the air passes through the buried drainage tubing, thus removing heat from the air. Upon returning into the greenhouse air space, the air is cooler and less humid. In this condition, the returned air can absorb moisture, thus cooling the greenhouse air. The uniqueness of this cooling system lies in the phase change that has occurred in the buried tubing. Besides cooling the greenhouse air, this process also heats the greenhouse base.||
|At night, the fan can be run to heat air as it again passes through the buried tubing, thus convectively transferring heat stored in the greenhouse base to the greenhouse atmosphere as the air reenters the greenhouse. In this manner, the subterranean heat storage system can provide both heating and cooling. The SHCS is equipped with dual speed fans to allow for finer temperature control. Experience in Colorado indicates that this system can meet the greenhouse heating and cooling needs for all but approximately 50 days per year.|
The Perpetual Harvest heating and cooling system design integrates a multi-fuel fired hydronic radiant heating system with the SHCS (primarily for climates without the solar resources of Colorado). The hydronic radiant heating system consists of tubes placed inside the SHCS tubes. This system includes a large water storage tank and is needed only during colder months, storing heat during daytime that can be withdrawn at night or during cloudy days by airflow of the SHCS.along the tubes of the radiant heating system. To some extent, the radiant floor heating system also transfers heat into the greenhouse base/floor. Heat is desirable at floor level to keep the root zone warm. As long as roots are warm, plants can withstand air temperatures up to 15°F less than the root zone temperature.
The hydronic radiant heating system is heated by three sources: a solar/thermal system, a co-generating unit, and a Babbington burner. The solar/thermal heating system is essentially a solar and/or wood boiler powered pool heater circulating hot water into the storage tank. The co-gen waste heat systems and Babbington burner are also connected to the radiant heating system as backup heat sources. The Babbington burner burns oil (waste vegetable or motor oil) or biodiesel and can quickly provide a significant amount of heat (the U.S. military heats all the meals served in the field using this system). The co-gen unit provides both heat and electricity and can be powered from a variety of renewable fuels such as ethanol, biodiesel, or methane.
Although the Perpetual Harvest greenhouse system can be retrofitted to just about any existing greenhouse design, due to low angle of sun in northern winters, the optimal Perpetual Harvest greenhouse would have a tall northern wall and the planting beds would be vertically stacked in terraces stepping upward toward the northern wall. Looking externally at the greenhouse from one end, it would appear similar to an A frame with the northern wall earth bermed. Ideally, the greenhouse would be built into a south facing hill and include a short southern wall at ground level. Besides terraced beds, it would be possible to apply the verti-grow methodthat utilizes pots hanging one above the other. It would also be possible to build the terraces out of enclosed concrete fish tanks, thus allowing fish to be raised (aquaponics), providing another income stream.
The Perpetual Harvest control systems are designed to regulate temperature using thermostats, timers, and/or programmable controllers, all with the option for manual override. The energy management systems are operated with the intent of maintaining the desired greenhouse temperature and humidity with the minimum energy input. The greenhouse should be maintained below 60% humidity at all times, if possible.
General temperature control in a northern climate is as follows. The SHCS (Subterranean Heating and Cooling System) is operated at all times, unless its outlet air temperature drops below 55°F . Should the SHCS air outlet temperature drop below ~60°F, the radiant heating system automatically initiates flow, thus transferring its heat to the air in the SHCS tubing, maintaining or increasing the SHCS outlet air temperature. During the mid-morning enhanced growth period of operation, heat addition from solar gain, the CO2 generators, and artificial lights could cause significant heat buildup, especially on sunny days. If such heat buildup causes interior air temperature to reach 96°F, CO2 generation and artificial lighting are automatically terminated and the greenhouse atmosphere is exhausted to the outdoors. After the cool incoming outside air causes interior temperature to drop to 80°F, exhaust fans are stopped and CO2 generation and artificial lighting are reinitiated, provided the three hour enhanced growing period has not reached completion. Subterranean heating operates to provide heat at night and in the morning until needed. Cooler temperatures may be needed to improve fruit set and possibly enhance fruit sweetness. Most berries need cooler night time temperatures to produce fruit, so the Perpetual Harvest system utilizes a solar air conditioning system to draw evening temps down to around 50°F for a short period during hot weather.
A TYPICAL DAY IN THE GREENHOUSE
Temperature/humidity regulation and plant maintenance activities during a normal Spring or Fall day in a northern climate typically occur as follows:
Sunrise – 7AM: Interior temp. – 60°F, Exterior temp. – 35°F
Remove bubbles to allow solar heat gain and turn on fans to recharge SHCS (if not already running). Turn on all interior air circulating fans to promote plant strength .
9AM: Interior temp. – 80°F, Exterior temp. – 50°F
Refill bubble cavity to minimize heat input
Water plants with soluble nutrient solution
9:30AM: no change in temp.
Foliar feed plants
10AM: Interior temp. – 85°F, Exterior temp. – 60°F-80°F
Turn on CO2 generator and gro-lights
Leave greenhouse for three hours to avoid high CO2 concentration
11AM: Interior temp. – 95°F
No human activity in greenhouse
12PM: no change in interior temp.
1PM: Interior temp. – 95°F
Shut down CO2 generators and lights
Give greenhouse a long exhaust fan cycle to lower interior temp. to 85°F
2PM: Interior temp. – 85°F
Remove any dead foliage
Prepare plants for taking cuttings
3PM: Interior temp. maintained at 85°F
4PM: Interior temp. maintained at 85°F
Begin daily harvest
If afternoon is cool or cloudy, remove bubbles to allow for solar gain
5PM: Interior temp. – 75°F Exterior temp. – 60°F
Turn off half of interior fans
6PM: Interior temp. – 75°F Exterior temp. – 55°F
Refill bubble cavity to hold in heat
Transplant seedlings and cuttings
6:30PM: no change in temp.
Turn off gro-lights
Give greenhouse a long exhaust cycle to remove humidity and lower temp. to below 60°F to sweeten fruit
8PM: Interior temp. – 60°F
Cooler night time temperatures may be needed for fruits and berries at certain times of their growing cycle to improve fruit set and possibly enhance fruit sweetness. Through use of the SHCS, the Perpetual Harvest system can produce these lower temperatures for a short period even during hot weather.
Integration of Renewable Energy Systems
Although the Perpetual Harvest Greenhouse system can operate profitably with the systems already described, overall energy efficiency can be improved by addition of a variety of renewable energy systems. Higher energy efficiency can lead to more profitable long term operation despite the higher capital expense of additional systems.
Perhaps the most viable and efficient energy component to integrate into the Perpetual Harvest system is the co-generation unit. This is because the co-gen unit produces multiple useful outputs. The co-gen unit produces electricity, which is needed for lighting, fans, and electronics. As described earlier, it also produces heat which can be stored in the hydronic radiant heating system. If the co-gen unit is powered by ethanol, methane, or bio-diesel it might even be possible to feed its exhaust into the greenhouse as a CO2 source (depending on completeness of combustion) and/or heat source. Furthermore, the exhaust line and cooling system lines could be buried into the greenhouse base where their heat can be transferred into the greenhouse substructure, much like the heat in the radiant heating system.
A system to produce the bio-fuel consumed by the co-gen unit could also be added. For example, if the co-gen unit is powered by a diesel engine, a bio-diesel plant could be built alongside to feed the engine. The same would be true for an ethanol still if the generator were powered by an engine designed to burn ethanol and/or gasoline. An ethanol plant has the added benefit of producing CO2 as a distillation by-product. As described earlier, it is desirable to enhance CO2 enrichment in the greenhouse, therefore CO2 produced by an ethanol still would displace the need for some of the CO2 generated through igniting propane or natural gas torches during the mid-morning enhanced growth period. The still would also produce waste heat that, if it could be captured, could heat water in the radiant heating system.
Addition of a methane digester to the mix of energy systems could produce at least two useful byproducts. The first would be the methane gas itself, which could be used at least three ways: 1) to power a gas engine for the co-gen unit, 2) burned during the enhanced growing period as a CO2 generator, 3) used to heat an ethanol still. A less obvious byproduct of a methane digester is the nutrient rich sludge left over from anaerobic digestion. The liquid from this sludge can function as an important nutrient source for the hydroponic solution being fed to the plants, and any undigestible sludge can be applied as garden fertilizer .
Regardless of which renewable energy systems (if any) are integrated with the Perpetual Harvest system, a building separate from the greenhouse will be needed to ensure the mechanical components are isolated from the humid greenhouse environment. This building would likely also house the composting and vermiculture operations.
Choice of renewable energy systems integrated into the Perpetual Harvest system will likely depend on availability of local biomass resources. It should be noted that for cases where a bio-fuel waste product (for example, methane digester sludge) is to be used in growing greenhouse produce, the biomass inputs may need to be of certified organic origin in order to retain the ability to certify the greenhouse produce as organic. This could be problematic unless the operation has access to organic biomass inputs.
Competitive Features and Profit Centers
The Perpetual Harvest Greenhouse system has numerous unique features that enhance its competitiveness in comparison to a standard three-season greenhouse. These features are:
- Simple, yet highly efficient heating and cooling design
- Continuous year-round growing and harvesting of organic fruits and vegetables, providing ‘just in time’ availability for buyers
- Ability to grow ‘designer’ fruits and vegetables by artificially creating ‘seasons’, thus capitalizing on increased prices for out of season crops
- Reduced need for pest control due to compost based nutrient application bringing balance to plants and keeping soil borne insects and diseases out of the greenhouse biome
- Higher plant brix (sugar) levels, resulting in longer produce shelf life
- Maximized sunlight harvesting through use of tiered beds
- Integrating renewable energy systems to:
- reduce energy costs,
- provide additional profit centers – such as sales of bio-fuels,
- establish local energy self-sufficiency
- Significantly reduce shipping costs by raising food crops locally
Besides the advantages just listed, it should be noted that the Perpetual Harvest food production system can become a uniquely closed resource loop if it is integrated with nearby restaurant(s). A resource sharing relationship with a local restaurant would allow waste cooking oil to be utilized as a bio-diesel source. It would also allow food scraps to be recycled, either directly into a bio-digester, or indirectly via feeding animals such as hogs and chickens. In turn, these animals could provide another income stream in the form of meat and eggs. It can be seen that as the Perpetual Harvest system integrates greater numbers of resource utilizing components, additional income streams arise due to the efficient utilization of energy and biomass. Ultimately, reduced waste increases profit, while greatly minimizing the challenge of waste elimination and removal (pollution) so prevalent in modern, large scale, industrial agriculture systems. See Perpetual Harvest Energy and Resource Flowpaths for a diagramatic representation of possible resource flows within the Perpetual Harvest system.
The Perpetual Harvest Greenhouse system derives its effectiveness and economic competitiveness from the integration of its many innovative features. Those features include high R-value bubble wall insulation, integrated methods of heat storage and temperature management, and an enhanced mid-day growing period stimulated by increased carbon dioxide concentration, enhanced lighting, and increased soluble nutrient levels. Although the construction costs of the Perpetual Harvest system exceed that of the standard three season greenhouse, the extended harvest season and significantly reduced long term energy costs should result in a higher return on investment for this system than for other greenhouse systems currently in operation. (See the article titled, “Packin’ snacks for trip to Mars ” to learn of a successful greenhouse in New Jersey that implements many, but not all of the features of the Perpetual Harvest system.) Inclusion of renewable energy systems into the overall design produces multiple income streams not typical of a greenhouse system. Ideally, the Perpetual Harvest system would be completely energy self sustaining – deriving all its energy needs directly from the sun or from locally harvested sunlight via biomass. Some general benefits of this system are:
- High quality, fresh-picked, organic produce with superior flavor.
- Local Grown. Minimal trucking costs.
- Can produces seasonal crops all year long if desired.
- Holds potential to integrate agribusiness into metropolitan areas.
- Diversifies income streams, providing a vehicle for reviving rural farm communities.
- Sustainable, renewable, environmentally sound.
- Profitable. Weekly crops/weekly income. Income can be steady instead of seasonal.
- Promotes self-sufficiency and independence.
- Could be used to reduce food and energy costs for prisons, schools, hospitals etc.
Lastly, it deserves to be stated that not only does the Perpetual Harvest system provide local employment and a possible means of regenerating local farm economies, it also can serve as the physical life blood of a sustainable community or co-housing unit. Considering that human societies are typically organized around and through sharing of both food and energy, the fully developed Perpetual Harvest system provides for these two most basic human needs.
At this time, a prototype of this fully integrated energy/food system is needed so that performance of the Perpetual Harvest system can be optimized. Once proven effective and profitable, this system can serve as an example of how a community can function in a self sustaining manner by efficiently using the resources at its immediate disposal.
Chris Marron, creator of the Perpetual Harvest system, has operated greenhouses for nearly a decade. His experience with different lengths of light exposure, frequencies of exposure, and exposures at different times during the day provide much of the basis for optimizing light to maximize plant growth. Chris built his own greenhouse that he used continuously for 7 years at elevation 6000 ft. in central Oregon near the city of Bend. Chris has experimented extensively with Biodynamic and Perelandra (http://www.perelandra-ltd.com) principles in his growing systems.
Carbon dioxide is heavier than air and displaces oxygen at floor level. Furthermore, operation of the CO2 generators reduces oxygen concentration in the greenhouse atmosphere. The alarm function could also be provided by an oxygen monitor.
For information on Sir Albert Howard and the Indore compost method, visit the Journey to Forever website (http://journeytoforever.org/farm_library/howard.html).
Muscle testing (aka: kinesiology) utilizes the inherent wisdom of the human body to determine truth. Muscle testing utilizes the predisposition of the body’s muscles to strengthen in the presence of truth. This process allows answering ‘yes-no’ questions by observing strong muscle response to ‘yes’ answers and weak muscle response to ‘no’ answers. This technique can be used to determine optimal nutrient levels needed by plants. See ‘Power vs. Force’ by Dr. David R. Hawkins for a full description of how truth can be determined via muscle testing.
A plenum is a common area in a distribution system, from which a substance will flow through openings in many directions.
The U.S. insulation value index. Most stick-framed houses have R-19 in walls and R-38 in the attic.
Read about the LivelyUp Greenhouse that retains remarkably warm indoor temperatures in the cold Canadian winter using this system. See the description at: www.solaroof.org/wiki/SolaRoof/LivelyUpGreenhouse .
Refer to the Sunny John website (http://www.sunnyjohn.com/indexpages/shcs.htm) for a complete description of the subterranean cooling and heating system, as well as how this system relies on phase change of water for its effectiveness.
The Babbington Burner is what the U.S. Military uses to heat meals in the field. It is a very simple system that quickly creates a substantial amount of heat by burning bio-diesel, vegetable oil, or even waste motor oil.
A co-gen unit is an internal combustion motor attached to an electric generator/alternator that captures waste engine and exhaust heat to create heating/cooling resources for living/growing space. A diesel generator that captures and uses waste heat, becomes more than twice as efficient as one that only makes electricity.
Verti-Grow is a growing method that stacks growing pots from floor to ceiling. When adding nutrients one simply fills the top pot and the rest are fed by gravity.
For optimal vegetative growing conditions, it is desirable to keep greenhouse temperature at 55°F or higher.
Solar air conditioning uses solar thermal techniques to supply the energy needed to drive a cooling system. They typically utilize a phase change or other molecular process to move heat from a cool location to a warmer location. Phase change systems of this sort often consist of a propane refrigeration unit and have been in use for more than 150 years to create ice for icehouses. These systems can also be as simple as passing air through piping buried at least 4 feet below ground where the soil temperature is maintained year round at a temperature approximately equivalent to the average yearly air temperature for a location.
Without airflow to move plants, plants will not develop the necessary structural strength and will be prone to falling over.
The ‘Packin’ Snacks for Trip to Mars’ article can be found athttp://www.pacpubserver.com/new/news/4-30-00/greenhouse.html .
At this time, I am satisfied with the completeness of this paper and that it can be sent out for review. Although many of the features and methods in this concept paper may sound untried, research Chris and I have performed on the internet indicated that nearly all the features described here have been tested and proven. However, no evidence can be found of anyone having applied all these concepts into one system – not that they couldn’t. We both suspect that greenhouses in Holland operate similar to this system – Holland is a world leader in greenhouse operation and its greenhouses feed much of Europe. Unfortunately, we can’t find internet information on Dutch greenhouses. Perhaps all their greenhouse articles are in Dutch.
I went to considerable effort to reference this document to existing information. Recognize that the description is generic and written for any climate. Certain aspects and features, particularly those related to energy production and management, may not be applicable to our local climate. Also, realize that this document describes all the possible options that can be included. It is unlikely that all the energy systems described would be included in a single design since that would drive up the cost significantly. I realize the document is a bit long, but that seemed to be necessary to adequately describe the system.
I think that at this time, this document needs to be reviewed by some people with greenhouse experience. I’m not really sure what they might say – no doubt some will pick holes in it due to its cost of construction – but others might see features that they wished they had in their own greenhouse. In my opinion, simply utilizing the bubble wall insulation system and the subterranean heating and cooling system would be very cost effective, simple to install, and energy efficient. Based on what I have read on these two systems, they alone might meet over 75% of the energy needs of this greenhouse system in our climate – and they require virtually no energy input to operate.
|Overview – Description – Profit Potential – Flow Chart (PDF)|
Perpetual Harvest Greenhouse System – Profit Potential
Simple Greenhouse Projections for Perpetual Harvest System – Bill Wilson
|Please note: In a permaculture greenhouse operation, it is more likely that there would be 2-3 dozen varieties of plants growing together for a complementary and sustainable system to be developed. For purposes of exploring production capabilities however, we were only able to find numbers for single crop production. Imagine having 18 of the most common vegetables growing in your greenhouse and you are supplying food not only for your family but for a local health food store and several restaurants that want tomatoes, cucumber, dill, lettuce, asparagus, zucchini, peas, beans, etc., all year round.
What if it were possible to net $500 a week from a single greenhouse…!
…claim a commercial greenhouse in the temperate climate zone (Feb. – Nov.) can conservatively produce an average of 4 lbs. of tomatoes per square foot (/sf), per year. They estimate that the cost to operate runs between $.70 and 1.00 per pound which includes the current cost of energy. They estimate product to sell for $1.25 to 2.50/lb. depending on the time of year and market competition.
A 25’ x 90’ greenhouse = 2,250 sf.
@4 lbs./sf x 2,250 sf = 9000 lbs. of tomatoes annually
Conventional Expenses, Income and Profit
Estimate Operational costs at .90 lb. (x 9.000 lbs.) = $8,100 to operate
(Heating and electrical, labor, debt repayment and interest, operating supplies, and taxes.)
Gross sales @ $1.30 (x 9,000 lbs.) = $11,700 gross revenue
Gross Profit (before management & sales costs) = $3,600
These are typical annual profit projections for a single, relatively-small greenhouse.
What is Possible with a Perpetual Harvest System?
A year round New Jersey greenhouse operation using CO2 and supplemental lighting (in the winter months) demonstrated that tomatoes can be produced year round. Yields were comfortably in the 12-16 lbs./sq./ft range. Chris Marron is confident his system will do much better. This needs to be tested, so for now we will use a conservative, 12 lbs./sq./ft yield.
12 lbs./sf x 2,250sf = 27,000 lbs. of tomatoes annually
Operational costs (go ahead and triple the above $8,100) = $24,300
(Heating and electrical, labor, debt repayment and interest, operating supplies, and taxes.)
Gross Sales @ 1.30 (x 27,000 lbs.) = $35,000 in gross revenues
Gross Profit (before Mgmt. & sales) = $10,700
If tomatoes were grown organically and sold for a higher premium ($1.80 instead of $1.30) this would boost income by $13,500 without increasing expenses.
Gross Profit with organics = $24,200
We have a friend who sells ripe, organic tomatoes for $5.00/lb. retail, in season (farmers market in Chicago area). Off season prices could be higher. The estimated profit if one could sell their produce at retail prices would be closer to $50,000 annually I believe. = $50,000
So… Build two or three of these greenhouses and you have a nice annual income.
Dear Reader: Remember, these are just my best estimates of what is possible. A prototype greenhouse still needs to be built to test these assumptions out.
Bill Wilson (March 2011)
http://www.hydro-gardens.com/planning_your_house.htm TOMATOES require from 4.0 to 5.0 square feet of greenhouse area per plant. Therefore, the plant population in a 30′ x 132′ greenhouse will range from 990 plants to 792 plants. Plant population is affected by greenhouse style, time of year you’re in production, and your location. Production is normally calculated in pounds per square feet of greenhouse area. It can range from 6.0# psf to well over 12# psf per year with currently available varieties. (See production estimates at www.hydro-ardens.com/tomato_seeds.htm)
The cost of producing vegetable crops varies substantially from season to season and year to year. It is generally accepted in the industry that this cost can range from $.70 per pound to $1.00 per pound. A few of the many factors that affect this cost are heating and electrical, labor, debt repayment and interest, operating supplies, and taxes.
The average selling price for vegetables in your area times the total yearly production gives you gross income. This will also vary substantially from season to season and year to year. Traditionally this yearly average has ranged from $1.25 per lb. to $2.50 per lb. for tomatoes.
High Production Green House (40lbs. sq. ft. annually)
From (Source: http://www.pacpubserver.com/new/news/4-30-00/greenhouse.html)
It takes only about 90 days to go from seed to harvest. An automated irrigation system waters and delivers nutrients to the plants, and is almost completely re-circulated. Special lamps augment the natural light and carbon dioxide is introduced to further boost production. The entire tomato-growing technique is very high-tech, except for one aspect: a hive of bees pollinate tomato flowers in the old- fashioned way. The end result is a red, delicious tomato. Only a food snob could tell the difference between one of these greenhouse babies and one grown in Jersey’s summertime fields. ” We produce about ten times the amount of tomatoes that would be grown outdoors in a similar space,” said Mr. Specca. The hydroponic growing process utilizes technology from the Netherlands and requires only about half the manual labor normally required.
